Large diameter cable AKL-300A water well drilling equipment

FOB Reference Price:Get Latest Price
US $15,000-25,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Percussion Drilling Rig
Power Type:
Diesel
Place of Origin:
Henan, China (Mainland)
Brand Name:
SENTE
Model Number:
AKL-300A
Usage:
Water Well
Voltage:
380V
Power(W):
75kw
Dimension(L*W*H):
9.30*2.50*3.10m
Weight:
9500KG
Certification:
ISO9001
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
SupplyAbility
SupplyAbility:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
40'' Container
Port
Tianjin, Qingdao, Shanghai
Lead Time :
Shipped in 30 days after payment

Large diameter cable AKL-300A water well drilling equipment



Product Description



1.    Mainly for foundation, construction piling, water well and borehole. It applies to various geological conditions.

2.    All components are installed in the trailer, like electric motor, drive motor, hoist, mast etc. It is convenient for transportation.

3.    Use the crank link mechanism to change the power's gyration motion into alternating motion, through the steel wire rope to drive the hammer bit to do up-and down motion.

4.    Best choice for a large diameter drilling project.

5.    It is easy to operate, two workers will be enough.

Product Detaills



Technical Parameters



Basic Mechanical Features and Specifications

No.

Mechanical features

Specifications

1

Dimensions(M)

9.30*2.50*3.10

2

Transport dimensions(M)

9.30*2.28*2.80

3

Weight(kg)

9500

4

Drilling diameter(mm)

300-1800

5

Drilling depth(M)

300(when dia. Is 600mm)

6

Max. Weight of drill bit(kg)

5000

7

Impact stroke(mm)

Max.850,Min.700

8

Rate of impact(time/min)

38-42

9

Electric motor

Model YL280M2-6,55KW

980R/Min

10

Height of mast (M)

Single bar8.5-9.5m;

Double bar12.5m

11

Load capacity of mast(kg)

50000

12

Hauling speed(km/h)

30

13

Lifting capacity of Hoist(N)

Front hoist

20096

Back hoist

68357

14

Steel wire rope of coiling block(M)

Front coiling block

6×37-dia.18 200-250(Left turning)

Back coiling block

6×19s+IWRC 200-300(Left turning)

15

Wheel

Tire size

7.50-20

Steel ring size

20×7

Packaging

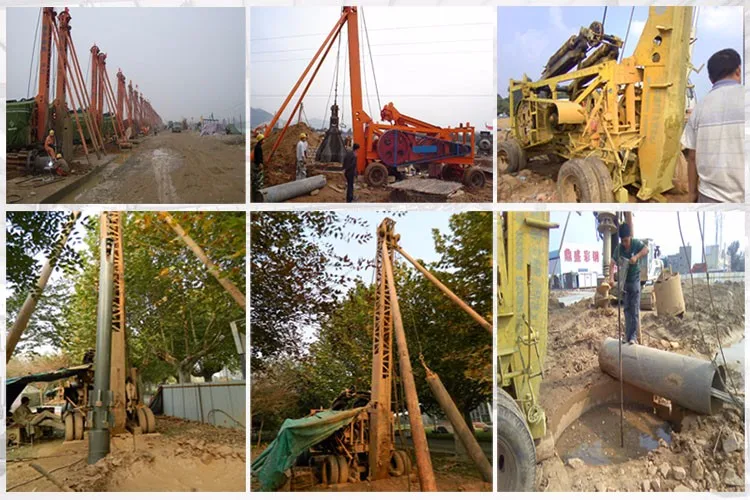

Project Site
